Amazon CloudFront’s signed url Trusted Key Group method notes

So, wanted to be able to set an expiry longer than 7 days (max for a signed url from s3)

First, make yourself an S3 bucket 🙂

Following this tutorial https://dev.to/idrisrampurawala/share-your-aws-s3-private-content-with-others-without-making-it-public-4k59

First needed to create a public key.

https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/private-content-trusted-signers.html

Easiest way on windows if you have git installed is to use the handy dandy version of openssl here

C:\Program Files\Git\usr\bin\

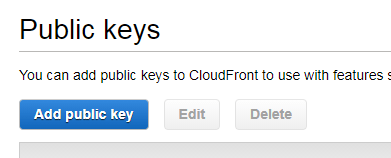

Create and upload the public key

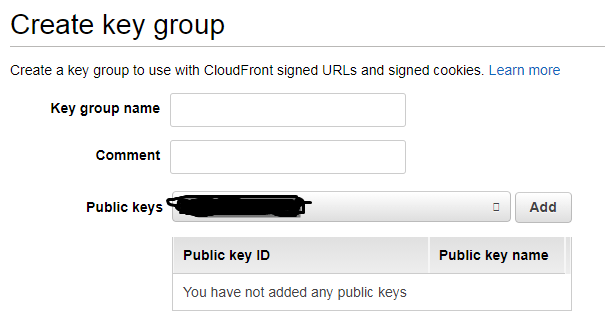

Create the Trusted Key Group and add the key you made

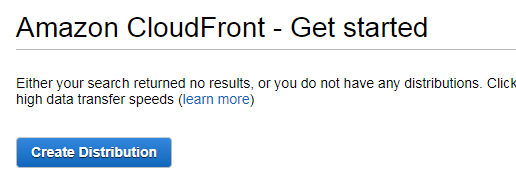

Now create a cloud front distribution. They have a handy drop down to select your bucket and it fills in Origin ID

Choose Restrict Bucket Access (That’s the whole point!)

Create a new identity, and have it update the bucket policy.

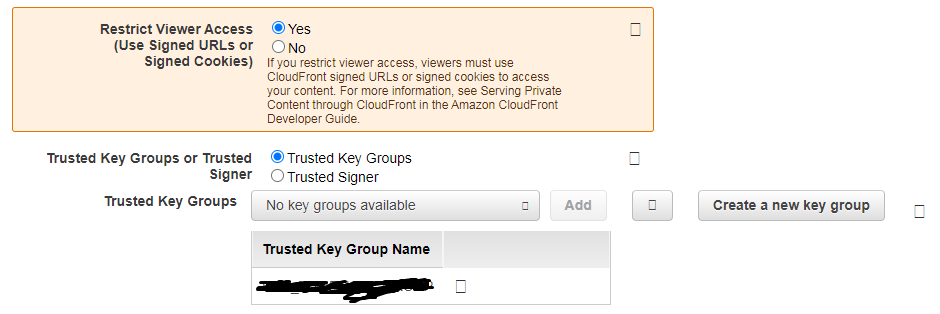

Restrict Viewer Access
(Use Signed URLs or
Signed Cookies)

Set to True

Choose to Used Trusted Key Groups, and add the key made above.

Put the private key into secrets manager

Wait until the distribution shows enabled, now create your lambda.

So I actually like this code sample the best https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/PrivateCFSignatureCodeAndExamples.html

And

https://github.com/boto/boto3/blob/develop/boto3/examples/cloudfront.rst

You of course need a copy of cryptography

Here is one if you trust a random stranger (Shout out to Javier!) -> https://github.com/mellerbeck/cryptography

There were two things that tripped me up. The first,

 # cloudfront key-par access ID generated in step 1
    key_id = <your-cloudfront-key-par-access-ID>

This is the ID of the public key you uploaded (NOT the distribution ID)

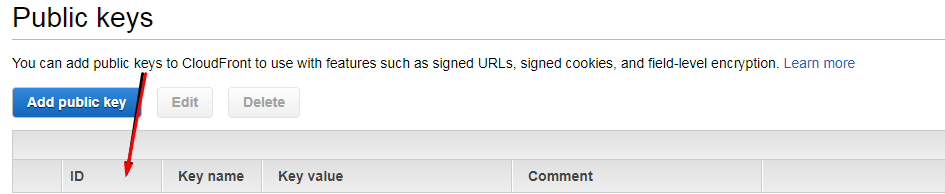

This column from the Public Keys screen

The second,

# your cloudfront distribution domain created in step 4 of distribution creation steps
    cloudfront_domain = <your-cloudfront-distribution-domain>

You need to include https:// in this variable, or you get accessed denied!

This was my clue https://github.com/boto/boto3/blob/develop/boto3/examples/cloudfront.rst

Also, looks like for cloudfront the expiration is set to a linux epoch time in seconds.

Good luck!
